| Math Gadget Construction |
![]() |
Start out with one of these... | |
![]() |

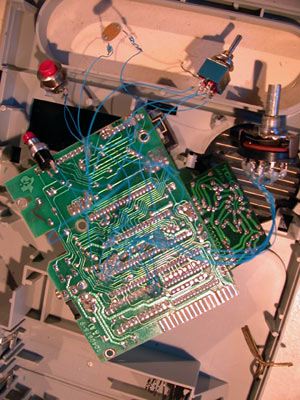

Here are the Math guts with my modifications in blue wirewrap. <---------------- |
![]() |

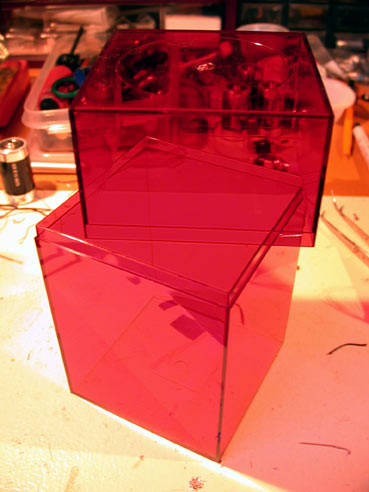

| Red acrylic box (from The Container Store). In the final versions, I swapped blue and red lids. ------------------> |
||
|
|
||

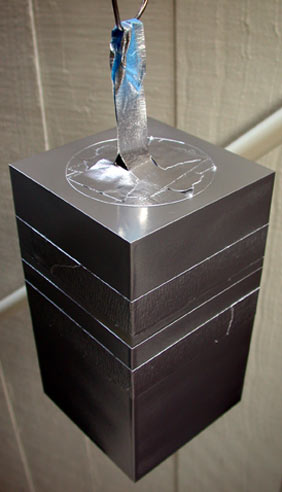

Math primer coat of silver. |
![]() |
|
![]() |

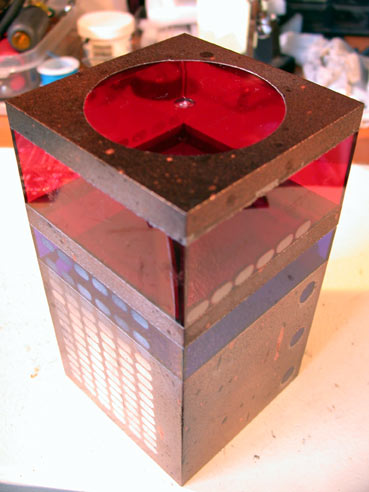

Math03 with finished paint job, utilizing stencils (the aluminum cover from a 1st generation iMac's RAM and processor daughtercard), and silver, bronze, and black spray paint splatter. No electronix yet inserted. Note the clear window that allows viewing of the LED display and circuitry. The circuit board had to be placed in the box diagonally to fit correctly. <------------------- |
|
-------------------->
|
||
![]() |
Me debuting and debugging Math at index's house, tickling the optical resistor with a cheezy LED light/radio thingee. | |
